| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 230415 | Gasket Ring A 6×10 Din 7603 | $0.27 | Add to Cart |
| 2 | 297555 | Please Pick Up Locally | $204.25 | Add to Cart |
| 3 | 445070 | Retaining Ring 62×2 | $3.72 | Add to Cart |
| 4 | 552280 | Gasket Ring 18,2/24/1 | $1.14 | Add to Cart |
| 5 | 810109 | Gear Housing | $472.49 | Add to Cart |
| 6 | 827830 | Cover Washer | $129.89 | Add to Cart |
| 7 | 827841 | Angular Ring | $109.29 | Add to Cart |
| 8 | 827851 | Distance Ring 26/36/4,5 | $37.85 | Add to Cart |
| 9 | 827862 | Ring Half | $140.88 | Add to Cart |
| 10 | 837024 | Nla | $657.09 | Add to Cart |
| 11 | 840270 | Magnetic Plug M18x1,5 | $34.76 | Add to Cart |
| 12 | 841302 | Hex. Screw M8x65 | $1.76 | Add to Cart |
| 13 | 841307 | Collar Hex. Screw M8x65 Sw 11 | $5.06 | Add to Cart |
| 14 | 841656 | Hex. Screw 1/2-2ounfx2 | $15.47 | Add to Cart |
| 15 | 841782 | Capstan Screw M6x10 | $17.48 | Add to Cart |
| 16 | 847621 | Distance Ring | $123.09 | Add to Cart |
| 17 | 850055 | Oil Seal 30x47x7/7,5 | $8.94 | Add to Cart |
| 18 | 850430 | O-ring 75-2,5 | $0.67 | Add to Cart |
| 19 | 886200 | Gear Set B 2,58 | $1,919.09 | Add to Cart |
| 20 | 886202 | Gear Set B 2,24 | $1,086.81 | Add to Cart |
| 21 | 886204 | Gear Set B 2,00 | $1,273.23 | Add to Cart |
| 22 | 910373 | Gear Cover | $503.15 | Add to Cart |
| 23 | 929670 | Dowel 10×13 | $7.89 | Add to Cart |
| 24 | 930536 | Gasket | $12.49 | Add to Cart |
| 25 | 931200 | Gasket Ring 18,2/22/2 | $5.93 | Add to Cart |
| 26 | 932093 | Ball Bearing 6304 Cs 20-52-15 | $27.30 | Add to Cart |
| 27 | 932820 | Ball Bearing 6305 C3 / 25-62-17 | $63.17 | Add to Cart |
| 28 | 939020 | Disk Spring B50 | $25.77 | Add to Cart |
| 29 | 941115 | Air Vent Screw M18x1,5 | $51.96 | Add to Cart |
| 30 | 941171 | Hex. Screw M8x110 | $3.72 | Add to Cart |
| 31 | 941351 | Hex. Screw M8x125 | $11.86 | Add to Cart |
| 32 | 944469 | Thrust Washer 20,5/30/0,8 | $3.44 | Add to Cart |
| 33 | 944470 | Shim 25,5/34/o,2 | $20.10 | Add to Cart |
| 34 | 944471 | Shim 25,5/34/o,3 | $20.37 | Add to Cart |
| 35 | 944472 | Shim 25,5/34/o,5 | $1.46 | Add to Cart |
| 36 | 944473 | Shim 25,5/34/1 | $43.41 | Add to Cart |
| 37 | 944474 | Shim 25,5/34/0,1 | $2.85 | Add to Cart |
| 38 | 945765 | Lock Washer Vhv 13 | $7.59 | Add to Cart |
| 39 | 945832 | Lock Washer A8 | $0.21 | Add to Cart |
| 40 | 958771 | Dog Hub | $297.58 | Add to Cart |

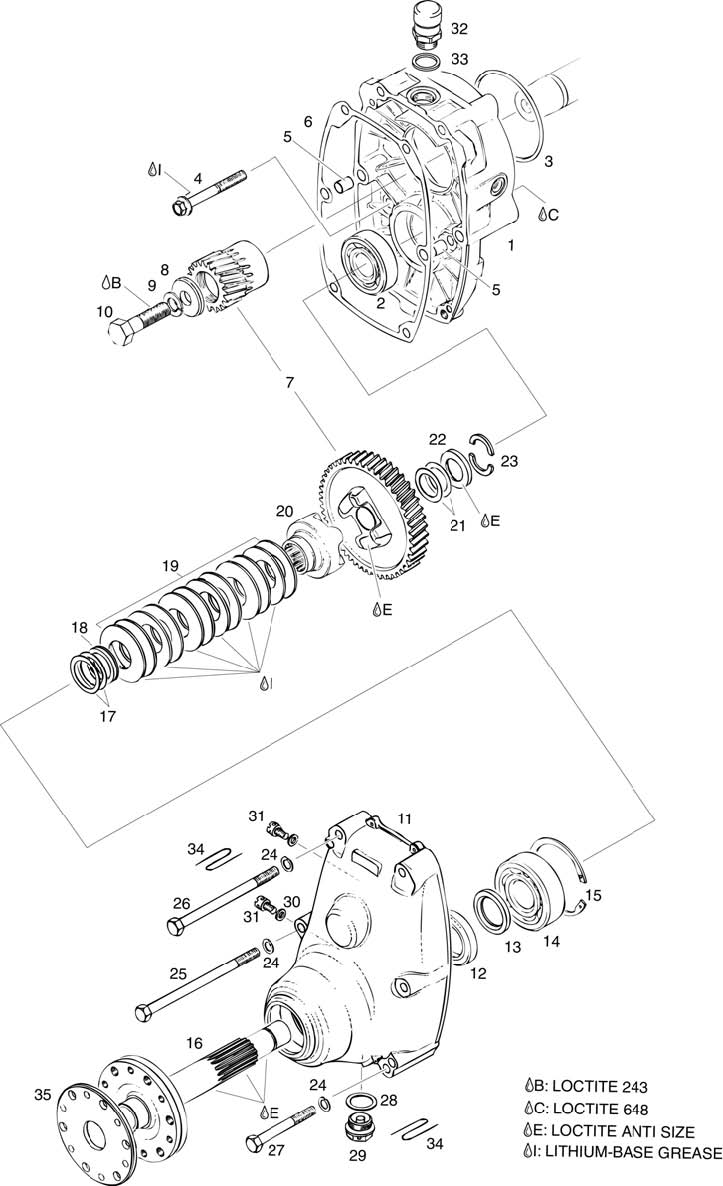

| REDUCTION GEARBOX | 230415, 297555, 445070, 552280, 810109, 827830, 827841, 827851, 827862, 837024, 840270, 841302, 841307, 841656, 841782, 847621, 850055, 850430, 886200, 886202, 886204, 910373, 929670, 930536, 931200, 932093, 932820, 939020, 941115, 941171, 941351, 944469, 944470, 944471, 944472, 944473, 944474, 945765, 945832, 958771 |
|---|
