| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 842579 | Hex. Nut M30x1.5 12mm, Lh | $68.86 | Add to Cart |
| 2 | 886127 | Gear Set I 2,27 | $1,463.80 | Add to Cart |
| 3 | 886517 | Gear Set I 2.43 Narrow | $1,336.61 | Add to Cart |
| 4 | 886548 | Gear Set I 2,43 | $1,336.61 | Add to Cart |
| 5 | 933362 | Bushing 31x33x29,8 | $158.31 | Add to Cart |
| 6 | 827992 | Thrust Washer 33,2/51/1,2 | $78.78 | Add to Cart |
| 7 | 834233 | Drive Gear 29 T., | $79.50 | Add to Cart |
| 8 | 996888 | Overload Clutch Assy, Retrofit Kit Narrow | $1,825.94 | Add to Cart |
| 9 | 996889 | Overload Clutch Retrofit Kit, Wide | $1,825.94 | Add to Cart |
| 10 | 926035 | Ring Half | $51.82 | Add to Cart |
| 11 | 996885 | Overload Clutch Assy,narrow | $2,004.94 | Add to Cart |
| 12 | 996910 | Overload Clutch Assy. Wide | $1,825.94 | Add to Cart |
| 13 | 847787 | Step Collar | $101.00 | Add to Cart |
| 14 | 838216 | Disk Spring B80, 80x41x3 | $31.88 | Add to Cart |
| 15 | 958891 | 958 891 Usr 958 896 | $496.49 | Add to Cart |
| 16 | 958898 | Dog Hub, W/wide Gearset | $397.92 | Add to Cart |
| 17 | 847689 | Spacer 35,2/42/6 | $69.51 | Add to Cart |
| 18 | 927401 | Shim 35,4/43/0,2 | $2.30 | Add to Cart |
| 19 | 927402 | Shim 35,4/43/0,5 | $2.85 | Add to Cart |
| 20 | 927403 | Shim 35,4/43/1,0 | $3.72 | Add to Cart |
| 21 | 848225 | Eccenter | $105.18 | Add to Cart |
| 22 | 847687 | Distance Sleeve 35,2/42/6 | $51.66 | Add to Cart |
| 23 | 937041 | Propeller Shaft Ver 3 | $1,538.62 | Add to Cart |
| 24 | 937047 | Propeller Shaft V2 | $1,286.03 | Add to Cart |
| 25 | 610363 | Gearbox Cover | $1,237.26 | Add to Cart |
| 26 | 950470 | Oil Seal As 40x55x7 | $91.34 | Add to Cart |
| 27 | 926022 | Spacer Ring 36/50/5,5 | $47.81 | Add to Cart |
| 28 | 832587 | Ball Bearing 6207e Tnh, 35-72-17 | $341.27 | Add to Cart |
| 29 | 944320 | Washer 7,2/18,8/3 | $3.17 | Add to Cart |
| 30 | 941760 | Hex. Screw M7x16 Din 933 | $1.46 | Add to Cart |
| 31 | 429230 | Dowel 6×20 | $0.59 | Add to Cart |
| 32 | 944131 | Washer 8 Mm | $1.14 | Add to Cart |
| 33 | 841562 | Allen Screw M8 X 45 | $1.31 | Add to Cart |
| 34 | 827962 | Washer 6,4 Din 125 | $0.21 | Add to Cart |
| 35 | 241823 | Allen Screw M6x45 Din 912 | $1.14 | Add to Cart |
| 36 | 940363 | Stud M8x23/14 | $2.18 | Add to Cart |
| 37 | 926151 | Cover | $31.28 | Add to Cart |
| 38 | 945832 | Lock Washer A8 | $0.21 | Add to Cart |
| 39 | 940592 | Hex.screw M8x20 | $1.12 | Add to Cart |
| 40 | 950200 | Oil Seal 30x52x7 | $94.37 | Add to Cart |
| 41 | 430175 | O-ring 46×3 | $4.82 | Add to Cart |
| 42 | 810301 | Oil Inlet Flange | $386.28 | Add to Cart |
| 43 | 810306 | Nla | $86.67 | Add to Cart |
| 44 | 232246 | Roller Bearing Rnu 205 Ecp/pab4 | $108.00 | Add to Cart |
| 45 | 945820 | Retaining Ring 52×2 | $2.85 | Add to Cart |
| 46 | 827837 | Cover Disk | $205.38 | Add to Cart |
| 47 | 842634 | Round-neck Nut Set M8 | $112.02 | Add to Cart |
| 48 | 842639 | Hex.neck Nut Set 5/16-20 Un | $69.47 | Add to Cart |
| 49 | 244980 | Sealing Cover | $33.92 | Add to Cart |

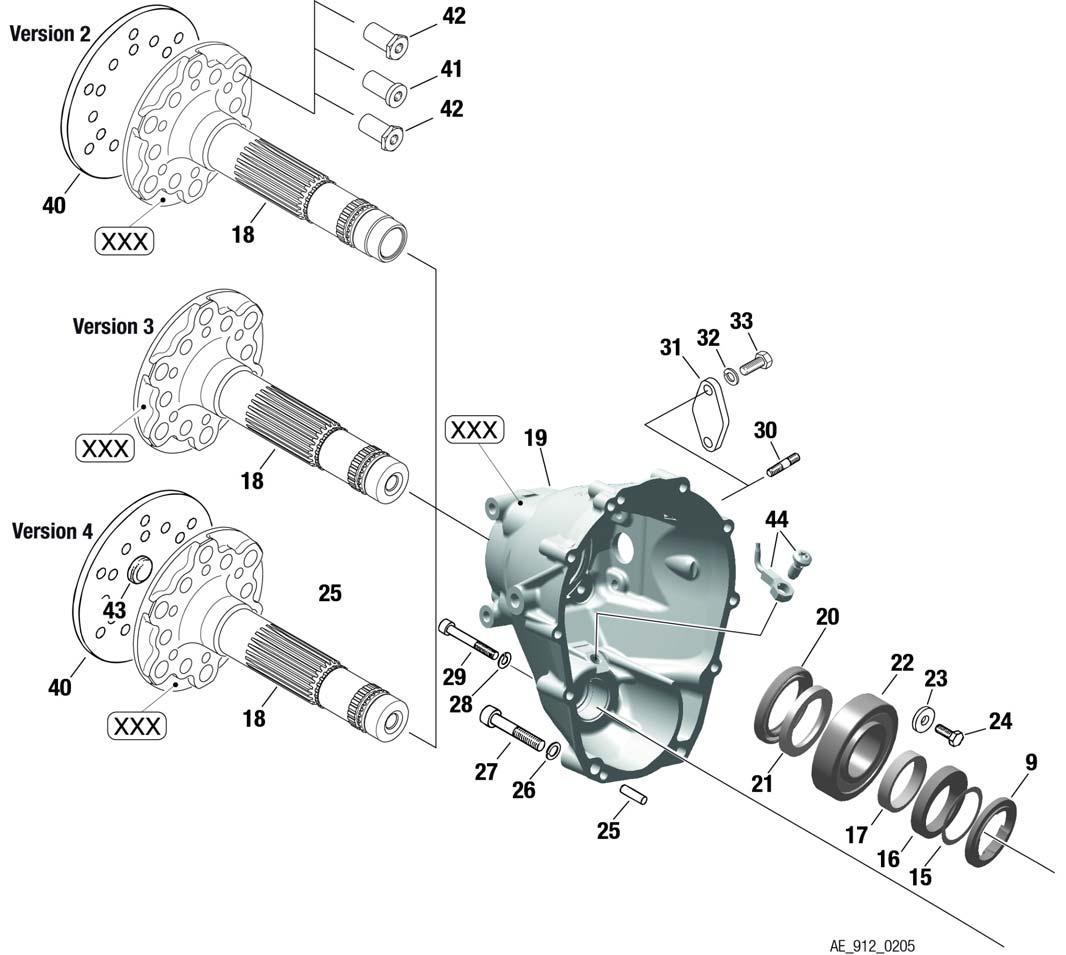

| PROPELLER GEAR ASSY | 232246, 241823, 244980, 429230, 430175, 610363, 810301, 810306, 827837, 827962, 827992, 832587, 834233, 838216, 841562, 842579, 842634, 842639, 847687, 847689, 847787, 848225, 886127, 886517, 886548, 926022, 926035, 926151, 927401, 927402, 927403, 933362, 937041, 937047, 940363, 940592, 941760, 944131, 944320, 945820, 945832, 950200, 950470, 958891, 958898, 996885, 996888, 996889, 996910 |
|---|
