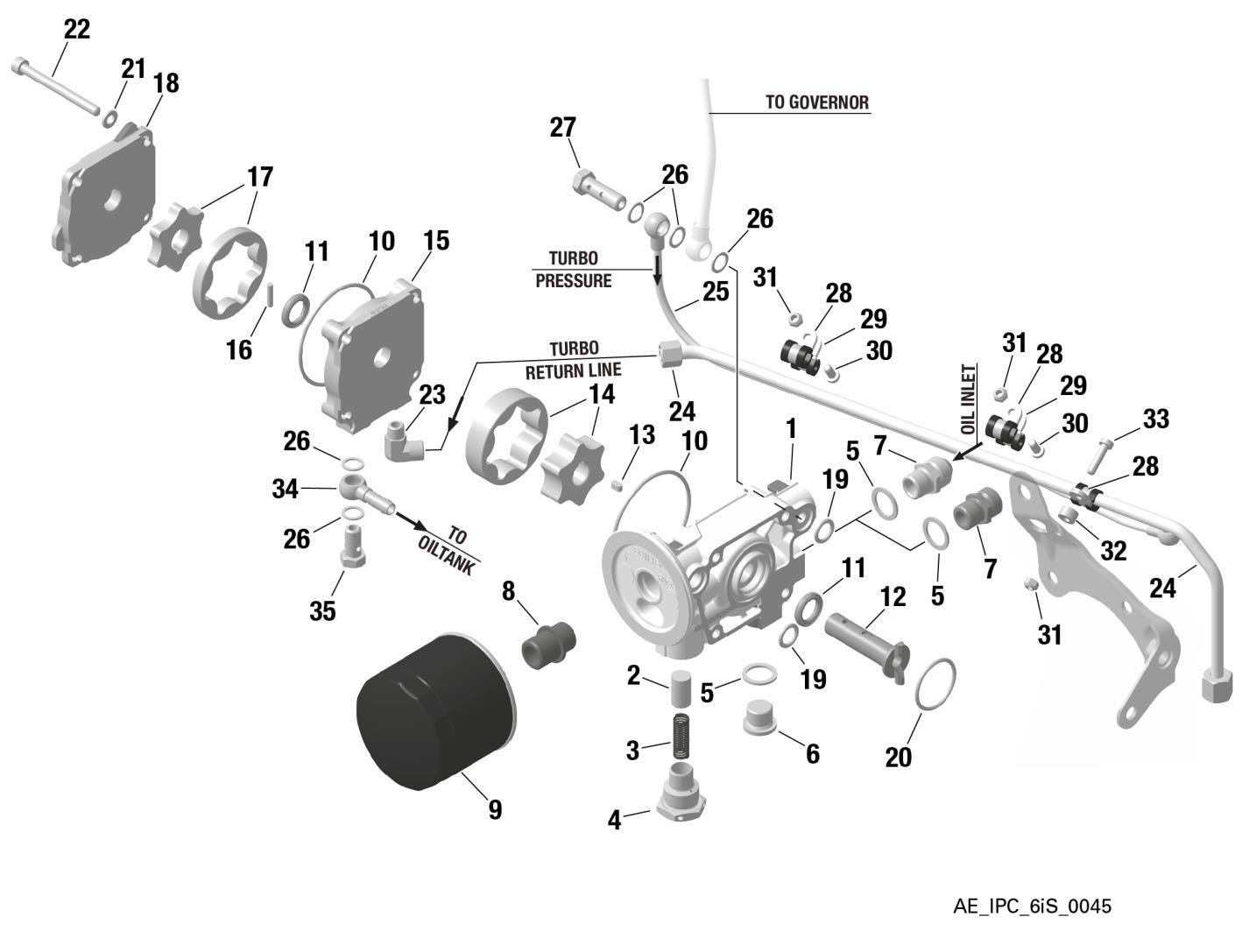

| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 812195 | Oil Pump Housing | $625.55 | Add to Cart |
| 2 | 911717 | Oil Pump Cover | $215.87 | Add to Cart |
| 3 | 940876 | Banjo Bolt M10x1x23 | $69.94 | Add to Cart |
| 4 | 940877 | Banjo Bolt W/ext Thread | $112.56 | Add to Cart |
| 5 | 956605 | Adapter M22x1.5 / M16x1/5 | $88.30 | Add to Cart |
| 6 | 956635 | Adapter 7/8-14 Unf /m16 X 1,5 | $92.67 | Add to Cart |
| 7 | 230150 | Gasket Ring 10×14 A Din 7603 | $0.21 | Add to Cart |
| 8 | 232732 | Neele Pin 4 X 15,8 G2 | $0.67 | Add to Cart |
| 9 | 240234 | Plug Screw M16x1,5 | $5.75 | Add to Cart |
| 10 | 241072 | $23.37 | Add to Cart | |
| 11 | 241263 | Allen Screw M6x65 | $1.76 | Add to Cart |
| 12 | 241842 | Allen Screw M5x12 | $1.76 | Add to Cart |
| 13 | 246580 | Key A 4x4x8 Din 6885 | $1.46 | Add to Cart |
| 14 | 250460 | O-ring 11-2,7 | $1.12 | Add to Cart |
| 15 | 430102 | Oil Seal A 14x22x4 Fpm | $16.23 | Add to Cart |
| 16 | 430622 | Gasket Ring A 16×22 | $1.98 | Add to Cart |
| 17 | 640850 | Plug Screw M22x1,5 | $130.59 | Add to Cart |
| 18 | 656760 | Turbo Oil Suction Line | $174.55 | Add to Cart |
| 19 | 656765 | Turbo Pressure Oil Line | $262.41 | Add to Cart |
| 20 | 656850 | Rotor Set | $166.26 | Add to Cart |
| 21 | 811463 | Oil Pump Housing | $700.48 | Add to Cart |
| 22 | 812194 | Oil Pump Housing | $362.58 | Add to Cart |
| 23 | 824020 | Male Stud Elbo M10x1 | $88.30 | Add to Cart |
| 24 | 825016 | Oil Filter, Rotax | $30.81 | Add to Cart |
| 25 | 827962 | Washer 6,4 Din 125 | $0.21 | Add to Cart |
| 26 | 830372 | O-ring 63-2,5 | $4.61 | Add to Cart |
| 27 | 837295 | Oil Pump Shaft | $586.43 | Add to Cart |
| 28 | 838125 | Compression Spring L65,6 | $6.60 | Add to Cart |
| 29 | 847664 | Spacer 5,2/11/6,4 | $20.28 | Add to Cart |
| 30 | 851111 | Cable Clamp 8/m5 | $62.07 | Add to Cart |
| 31 | 851116 | Cable Clamp 5/m5 | $62.69 | Add to Cart |
| 32 | 856330 | Regulating Piston | $53.01 | Add to Cart |
| 33 | 888821 | Pressure Inner And Outer Rotor | $152.06 | Add to Cart |
| 34 | 911713 | Use 911 717 | $215.87 | Add to Cart |
| 35 | 924430 | Oil Filter Nipple | $20.90 | Add to Cart |
| 36 | 941540 | Allen Screw M5x20 Din 6912 | $0.40 | Add to Cart |
| 37 | 942021 | Lock Nut M5 | $0.21 | Add to Cart |
| 38 | 950410 | O-ring 30×2,5 | $1.74 | Add to Cart |
| 39 | 956314 | Hose Nipple 4/6 Din7642 | $46.47 | Add to Cart |
| 40 | 956652 | Adapter 3/4-16 Unf16/m16 X 1.5 | $226.96 | Add to Cart |
| 41 | 956655 | Adapter M18x1.5/ M16x1,5 | $158.46 | Add to Cart |
| OIL PUMP ASSY 5 | 230150, 232732, 240234, 241072, 241263, 241842, 246580, 250460, 430102, 430622, 640850, 656760, 656765, 656850, 811463, 812195, 824020, 825016, 827962, 830372, 837295, 838125, 847664, 851111, 851116, 856330, 888821, 911713, 911717, 924430, 940876, 940877, 941540, 942021, 950410, 956314, 956605, 956635 |
|---|
