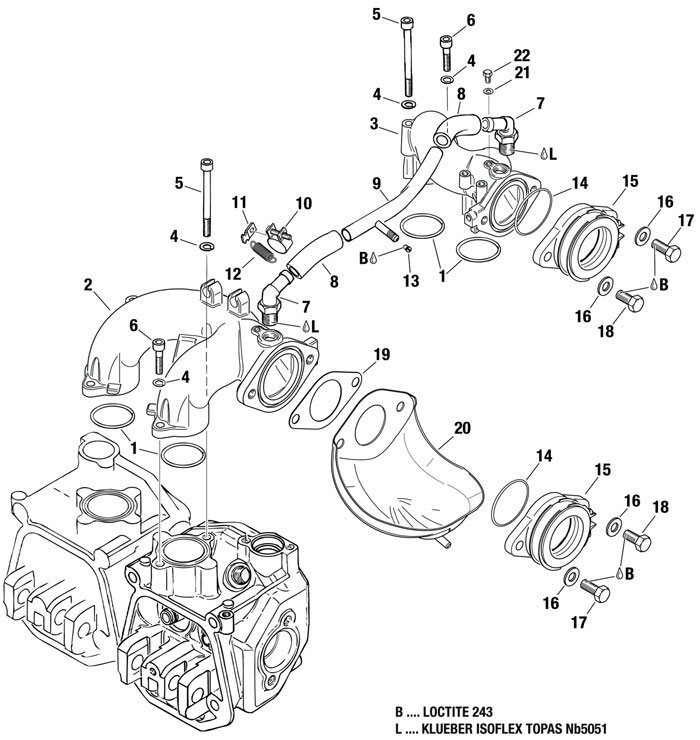

| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 230910 | O-ring 34×2 | $2.63 | Add to Cart |
| 2 | 867933 | Intake Manifold Assy. 2/4 | $246.36 | Add to Cart |
| 3 | 867936 | Intake Manifold | $510.45 | Add to Cart |
| 4 | 827962 | Washer 6,4 Din 125 | $0.21 | Add to Cart |
| 5 | 241871 | No Longer Available | $2.43 | Add to Cart |
| 6 | 240533 | Allen M6x75 | $1.52 | Add to Cart |
| 7 | 840866 | Allen Screw M6x25 Din 912 | $0.67 | Add to Cart |
| 8 | 838242 | Spring | $31.92 | Add to Cart |
| 9 | 956143 | Tube 66 Mm | $13.73 | Add to Cart |
| 10 | 956141 | Tube 81 Mm | $17.28 | Add to Cart |
| 11 | 956142 | Low Pressure Hose (sold Per Meter) | $111.40 | Add to Cart |
| 12 | 924541 | Compensating Tube Assy., | $70.33 | Add to Cart |
| 13 | 853515 | Clamp 16/9 | $5.39 | Add to Cart |
| 14 | 953400 | Bracket | $1.10 | Add to Cart |
| 15 | 922242 | Angular Tube | $39.86 | Add to Cart |
| 16 | 940980 | Screw M3.5 | $29.19 | Add to Cart |
| 17 | 230290 | O-ring | $1.31 | Add to Cart |
| 18 | 230300 | O-ring 47-2 | $0.45 | Add to Cart |
| 19 | 267789 | Rubber Flange Assy. | $34.71 | Add to Cart |
| 20 | 250315 | Washer 8,4 | $0.21 | Add to Cart |
| 21 | 940483 | Hex. Screw M8x30 | $0.45 | Add to Cart |
| 22 | 240277 | Hex. Screw M8x25 | $0.67 | Add to Cart |
| 23 | 874300 | Drip Tray 914 | $78.47 | Add to Cart |
| 24 | 931640 | Gasket | $3.94 | Add to Cart |
| 25 | 230415 | Gasket Ring A 6×10 Din 7603 | $0.27 | Add to Cart |
| 26 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | $1.14 | Add to Cart |
| INTAKE MANIFOLD | 230290, 230300, 230415, 230910, 240277, 240533, 241871, 250315, 267789, 641071, 827962, 838242, 840866, 853515, 867933, 867936, 874300, 922242, 924541, 931640, 940483, 940980, 953400, 956141, 956142, 956143 |
|---|
