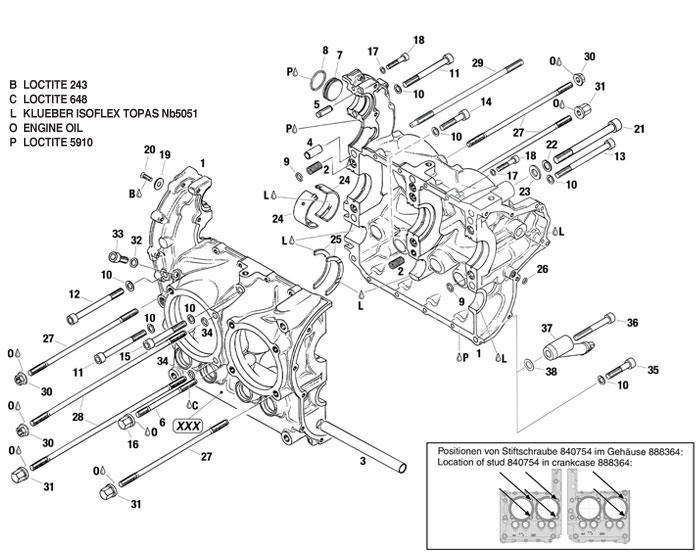

| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 840191 | Stud M8x105 | $20.10 | Add to Cart |
| 2 | 944222 | Blinding Shim | $20.63 | Add to Cart |
| 3 | 430061 | O-ring 26.7 X 1.8 | $1.12 | Add to Cart |
| 4 | 945832 | Lock Washer A8 | $0.21 | Add to Cart |
| 5 | 840062 | Alen M8x80 | $8.12 | Add to Cart |
| 6 | 640932 | Allen Screw M8x90 Din 912 | $5.43 | Add to Cart |
| 7 | 440427 | Allen Screw M8x100 Din 912 | $6.29 | Add to Cart |
| 8 | 440406 | M8 X 65 Collar Hex Screw | $24.67 | Add to Cart |
| 9 | 842476 | Collar Cap Nut M8 | $55.61 | Add to Cart |
| 10 | 827962 | Washer 6,4 Din 125 | $0.21 | Add to Cart |
| 11 | 840887 | Allen Screw M6x30 Din 912 | $1.46 | Add to Cart |
| 12 | 227280 | Thrust Washer | $3.44 | Add to Cart |
| 13 | 940316 | Countersunk Screw M5x12 | $0.67 | Add to Cart |
| 14 | 941487 | Allen Screw M10x110 Din 912 | $7.47 | Add to Cart |
| 15 | 941557 | Nla | $12.77 | Add to Cart |
| 16 | 945833 | Lock Washer A10 | $0.45 | Add to Cart |
| 17 | 927411 | Washer 10,5 | $0.21 | Add to Cart |
| 18 | 831929 | O-ring 5×2 | $1.12 | Add to Cart |
| 19 | 840752 | Stud, M8 X 201 | $12.48 | Add to Cart |
| 20 | 840757 | Stud M8x291 | $17.66 | Add to Cart |
| 21 | 840754 | Stud M8x210 | $20.61 | Add to Cart |
| 22 | 842610 | Hex Nut M8 | $0.18 | Add to Cart |
| 23 | 950141 | Gasket Ring A 8×13 Din 7603 | $0.51 | Add to Cart |
| 24 | 240072 | Allen Screw M8x20 | $0.45 | Add to Cart |
| 25 | 830415 | O-ring 7×2 | $1.31 | Add to Cart |
| 26 | 940071 | Hex Screw M8 X 45 | $9.15 | Add to Cart |
| 27 | 440107 | Allen Screw M8x50 Din 912 | $3.17 | Add to Cart |
| 28 | 953306 | Manifold Bracket Assy | $395.42 | Add to Cart |
| 29 | 926400 | Washer 8,4/15/0,5 | $4.57 | Add to Cart |
| 30 | 926401 | Washer 8,4/15/1 | $4.89 | Add to Cart |
| 31 | 926402 | Washer 8,4/15/1,5 | $5.15 | Add to Cart |
| 32 | 881120 | Crank Bolt Kit From 06.0010 | $1,042.74 | Add to Cart |
| CRANKCASE | 227280, 240072, 430061, 440107, 440406, 440427, 640932, 827962, 830415, 831929, 840062, 840191, 840752, 840754, 840757, 840887, 842476, 842610, 881120, 926400, 926401, 926402, 927411, 940071, 940316, 941487, 941557, 944222, 945832, 945833, 950141, 953306 |
|---|
