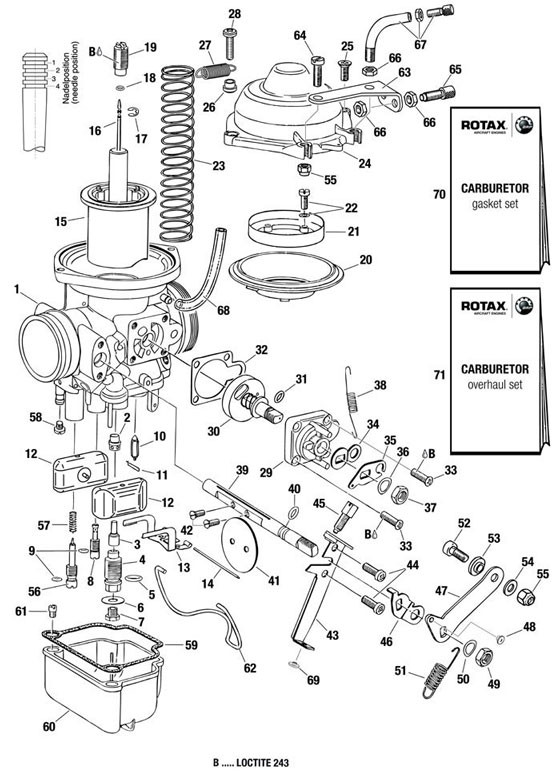

| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 892502 | Contant Depression Carburetor Assy 1/3 | $1,030.76 | Add to Cart |
| 2 | 892507 | Constant Depression Carburetor Assy 2/4 | $1,030.76 | Add to Cart |
| 3 | 961200 | Diffuser | $38.31 | Add to Cart |
| 4 | 261607 | Needle Jet 2,72 | $50.74 | Add to Cart |
| 5 | 963130 | Mixing Tube | $38.31 | Add to Cart |
| 6 | 430800 | O-ring 8×2 | $10.19 | Add to Cart |
| 7 | 827160 | Shim | $9.65 | Add to Cart |
| 8 | 268985 | Main Jet 160 | $27.91 | Add to Cart |
| 9 | 268984 | Main Jet 155 | $27.91 | Add to Cart |
| 10 | 268996 | Main Jet 158 | $27.91 | Add to Cart |
| 11 | 963143 | Idle Jet 35 | $80.88 | Add to Cart |
| 12 | 831713 | O-ring Din 3771-3,2×1,8 | $5.73 | Add to Cart |
| 13 | 261708 | Float Needle Valve W.viton Tip | $69.74 | Add to Cart |
| 14 | 261710 | Float Needle Clip | $4.48 | Add to Cart |
| 15 | 861189 | Floats Qty 2 | $77.35 | Add to Cart |
| 16 | 861192 | Float Bracket | $19.99 | Add to Cart |
| 17 | 929702 | Pin | $11.10 | Add to Cart |
| 18 | 961231 | Carburetor Piston | $464.65 | Add to Cart |
| 19 | 961215 | Jet Needle | $41.55 | Add to Cart |
| 20 | 945786 | Circlip | $3.37 | Add to Cart |
| 21 | 950430 | O-ring 2,5×1,5-n | $3.82 | Add to Cart |
| 22 | 961293 | Fixation Screw | $44.46 | Add to Cart |
| 23 | 861116 | Diaphragm | $68.68 | Add to Cart |
| 24 | 961240 | Retaining Ring | $36.51 | Add to Cart |
| 25 | 841210 | Combined Screw M4x12 | $4.53 | Add to Cart |
| 26 | 938365 | Throttle Valve Spring | $27.91 | Add to Cart |
| 27 | 961250 | Chamber Top | $304.31 | Add to Cart |
| 28 | 841341 | Countersunk Screw M5x12 | $4.31 | Add to Cart |
| 29 | 847910 | Distance Sleeve | $28.35 | Add to Cart |
| 30 | 838242 | Spring | $31.92 | Add to Cart |
| 31 | 640251 | Slotted Pan-head Screw M5x20 | $5.75 | Add to Cart |
| 32 | 961281 | Choke Housing | $63.89 | Add to Cart |
| 33 | 961273 | Choke Valve Assy., 1/3 | $182.14 | Add to Cart |
| 34 | 961278 | Choke Valve Assy., 2/4 | $182.14 | Add to Cart |
| 35 | 950420 | O-ring 5×1,5-n | $18.56 | Add to Cart |
| 36 | 950030 | Gasket | $15.79 | Add to Cart |
| 37 | 841360 | Slotted Head Screw M4x14 | $7.15 | Add to Cart |
| 38 | 848241 | Choke Lever Inside | $8.96 | Add to Cart |
| 39 | 848245 | Choke Lever Outside | $20.67 | Add to Cart |
| 40 | 845035 | Spring Washer 8,3/13,6/0,4 | $7.89 | Add to Cart |
| 41 | 942290 | Hex.nut M8x1 | $7.15 | Add to Cart |
| 42 | 938286 | Return Spring | $19.57 | Add to Cart |
| 43 | 963992 | Float Chamber 2/4, 912 | $182.14 | Add to Cart |
| 44 | 950020 | O-ring 6×1,9 | $17.91 | Add to Cart |
| 45 | 963666 | Float Chamber 2/4, 912 | $182.14 | Add to Cart |
| 46 | 941200 | Slotted Head Screw M3x6 | $8.94 | Add to Cart |
| 47 | 961262 | Cable Support Assy. | $119.42 | Add to Cart |
| 48 | 961267 | Cable Support Assy. | $122.03 | Add to Cart |
| 49 | 240357 | Slotted Head Screw M4x10 | $5.12 | Add to Cart |
| 50 | 963162 | Throttle Valve Stop Screw | $11.49 | Add to Cart |
| 51 | 848232 | Stop Lever | $10.75 | Add to Cart |
| 52 | 848230 | Stop Lever | $10.09 | Add to Cart |
| 53 | 963026 | Throttle Valve Lever 1/3 | $91.13 | Add to Cart |
| 54 | 963021 | Throttle Valve Lever 2/4 | $91.13 | Add to Cart |
| 55 | 963015 | Sleeve | $8.51 | Add to Cart |
| 56 | 938288 | Return Spring | $37.39 | Add to Cart |
| 57 | 241848 | Allen Screw M5 X 12 | $21.42 | Add to Cart |
| 58 | 847741 | Graduated Sleeve | $27.48 | Add to Cart |
| 59 | 827801 | Washer A 5,5 | $0.21 | Add to Cart |
| 60 | 842033 | Lock Nut M5 | $0.27 | Add to Cart |
| 61 | 961222 | Idle Mixture Screw | $48.82 | Add to Cart |
| 62 | 239463 | Compression Spring | $19.57 | Add to Cart |
| 63 | 941740 | Slotted Head Screw M3,5×5 | $6.71 | Add to Cart |
| 64 | 830721 | Gasket | $46.95 | Add to Cart |
| 65 | 963231 | Float Chamber 1/3, 912 | $182.14 | Add to Cart |
| 66 | 963233 | Float Chamber 2/4, 912 | $182.14 | Add to Cart |
| 67 | 268758 | Jet 85 | $27.91 | Add to Cart |
| 68 | 268762 | Jet 105 | $27.91 | Add to Cart |
| 69 | 268763 | Jet 130 | $27.91 | Add to Cart |
| 70 | 268765 | Jet 140 | $27.91 | Add to Cart |
| 71 | 963180 | Spring Clip | $53.46 | Add to Cart |
| 72 | 851072 | Support Left | $24.67 | Add to Cart |
| 73 | 851074 | Support Right | $24.67 | Add to Cart |
| 74 | 240761 | Slotted Head Screw M5x16 | $3.44 | Add to Cart |
| 75 | 241440 | Adjustment Screw M6x0,75 | $16.62 | Add to Cart |
| 76 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | $7.15 | Add to Cart |
| 77 | 861640 | Bent Tube Assy., | $69.74 | Add to Cart |
| 78 | 256035 | Air Vent Line 120mm | $4.48 | Add to Cart |
| 79 | 963010 | Sleeve | $8.51 | Add to Cart |
| 80 | 996946 | Gasket Set Carburetor | $191.46 | Add to Cart |
| 81 | 889534 | Carb Overhaul Kit | $302.14 | Add to Cart |
| CARBURETOR | 239463, 240357, 240761, 241440, 241848, 256035, 261607, 261708, 261710, 268758, 268762, 268763, 268765, 268984, 268985, 268996, 430800, 640251, 827160, 827801, 830721, 831713, 838242, 841210, 841341, 841360, 842033, 845035, 847741, 847910, 848230, 848232, 848241, 848245, 851072, 851074, 861116, 861189, 861192, 861640, 889534, 892502, 892507, 929702, 938286, 938288, 938365, 941200, 941740, 942290, 942541, 945786, 950020, 950030, 950420, 950430, 961200, 961215, 961222, 961231, 961240, 961250, 961262, 961267, 961273, 961278, 961281, 961293, 963010, 963015, 963021, 963026, 963130, 963143, 963162, 963180, 963231, 963233, 963666, 963992, 996946 |
|---|
