| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 230415 | Gasket Ring A 6×10 Din 7603 | $0.27 | Add to Cart |
| 2 | 239730 | Compression Spring | $15.21 | Add to Cart |
| 3 | 241430 | Hex. Screw M5x12 | $12.48 | Add to Cart |
| 4 | 241440 | Adjustment Screw M6x0,75 | $16.62 | Add to Cart |
| 5 | 260370 | Rubber Grommet | $9.57 | Add to Cart |
| 6 | 260490 | Rubber Cap | $15.62 | Add to Cart |
| 7 | 261013 | Float Chamber Assy., | $172.51 | Add to Cart |
| 8 | 261625 | Sleeve | $39.44 | Add to Cart |
| 9 | 261704 | Float Needle Valve W. Viton Tip | $70.74 | Add to Cart |
| 10 | 261710 | Float Needle Clip | $4.48 | Add to Cart |
| 11 | 261770 | Choke Housing | $203.81 | Add to Cart |
| 12 | 268847 | Choke Piston With Gasket | $76.70 | Add to Cart |
| 13 | 268850 | Sleeve | $7.06 | Add to Cart |
| 14 | 268982 | Main Jet 145 | $27.91 | Add to Cart |
| 15 | 268986 | Main Jet 165 | $27.91 | Add to Cart |
| 16 | 640220 | Slotted Head Screw M6x5 | $64.32 | Add to Cart |
| 17 | 661050 | Compression Spring | $36.45 | Add to Cart |
| 18 | 827347 | Spring Cup | $39.44 | Add to Cart |
| 19 | 830722 | Gasket | $61.00 | Add to Cart |
| 20 | 831450 | Rubber Ring | $37.25 | Add to Cart |
| 21 | 831713 | O-ring Din 3771-3,2×1,8 | $5.73 | Add to Cart |
| 22 | 860610 | Nla | $11.13 | Add to Cart |
| 23 | 861189 | Floats Qty 2 | $77.35 | Add to Cart |
| 24 | 861192 | Float Bracket | $19.99 | Add to Cart |
| 25 | 861940 | Air Vent Line | $70.53 | Add to Cart |
| 26 | 929702 | Pin | $11.10 | Add to Cart |
| 27 | 938640 | Spring | $5.49 | Add to Cart |
| 28 | 938655 | Carburetor Piston Spring 1,25/14 | $60.37 | Add to Cart |
| 29 | 940551 | Hose Nipple, M6 | $56.49 | Add to Cart |
| 30 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | $7.15 | Add to Cart |
| 31 | 950430 | O-ring 2,5×1,5-n | $3.82 | Add to Cart |
| 32 | 961043 | Jet Needle 11g2 | $36.02 | Add to Cart |
| 33 | 963147 | Idle Jet 55 | $80.88 | Add to Cart |
| 34 | 963155 | Air Regulating Screw | $62.37 | Add to Cart |
| 35 | 963167 | Adjustment Screw | $30.54 | Add to Cart |
| 36 | 963180 | Spring Clip | $53.46 | Add to Cart |
| 37 | 963500 | Needle Clip | $20.60 | Add to Cart |
| 38 | 963679 | Carburetor Piston | $233.58 | Add to Cart |
| 39 | 963691 | Needle Jet 2,68 | $50.74 | Add to Cart |
| 40 | 963697 | Needle Jet 2,72 | $50.74 | Add to Cart |
| 41 | 963700 | Mixing Tube | $70.53 | Add to Cart |
| 42 | 963718 | Jet Needle 15k2 | $36.02 | Add to Cart |
| 43 | 963723 | Cover Plate Assy | $360.16 | Add to Cart |
| 44 | 963740 | Choke Piston | $43.88 | Add to Cart |
| 45 | 963750 | Choke Housing | $114.31 | Add to Cart |
| 46 | 995667 | Hand Lever Choke Set | $259.20 | Add to Cart |

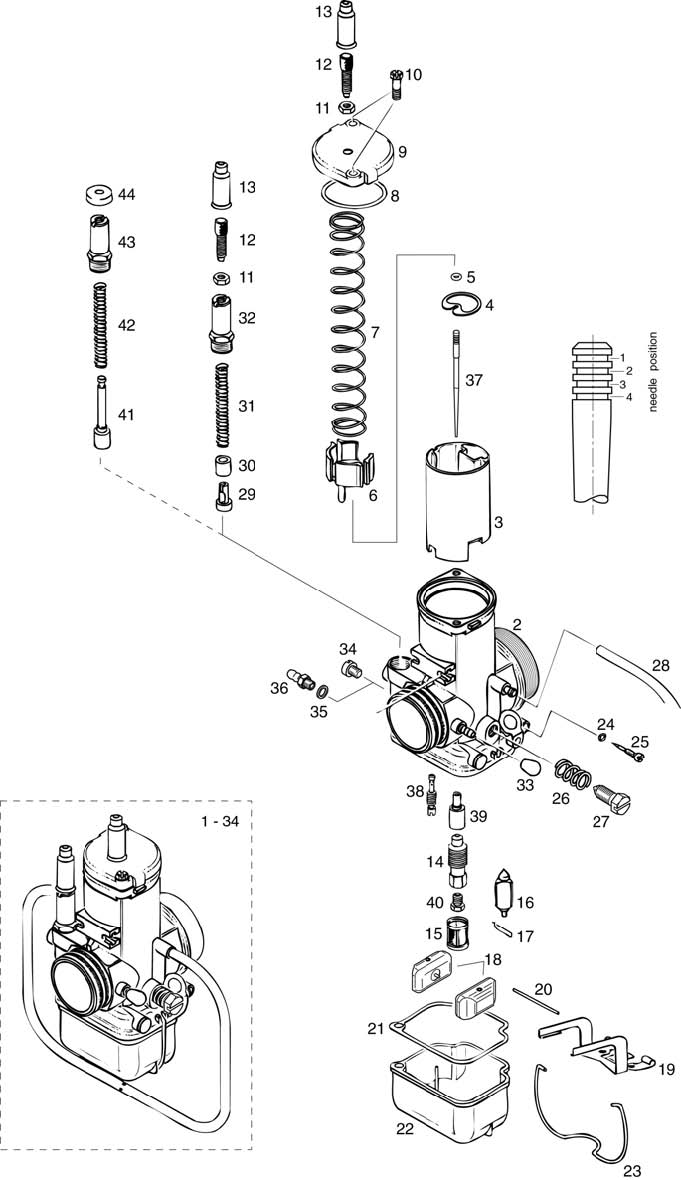

| BING DOUBLE-FLOAT | 230415, 239730, 241430, 241440, 260370, 260490, 261013, 261625, 261704, 261710, 261770, 268847, 268850, 268982, 268986, 640220, 661050, 827347, 830722, 831450, 831713, 860610, 861189, 861192, 861940, 929702, 938640, 938655, 940551, 942541, 950430, 961043, 963147, 963155, 963167, 963180, 963500, 963679, 963691, 963697, 963700, 963718, 963723, 963740, 963750, 995667 |
|---|
