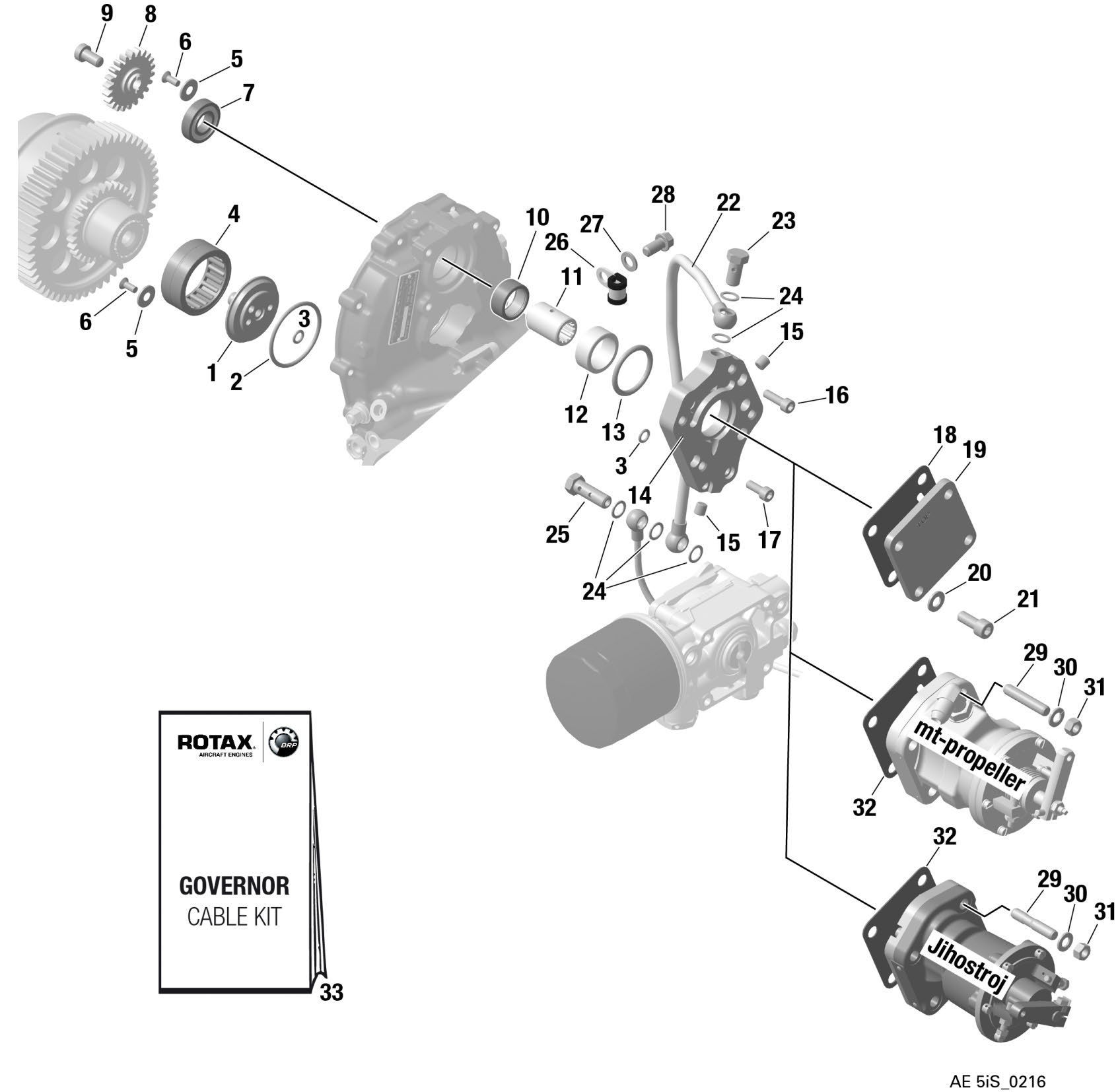

| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 430061 | O-ring 26.7 X 1.8 | $1.12 | Add to Cart |
| 2 | 810321 | Oil Inlet Flange Adaptor | $242.21 | Add to Cart |
| 3 | 832953 | Needle Bearing Rna 49/32 | $509.83 | Add to Cart |
| 4 | 940876 | Banjo Bolt M10x1x23 | $69.94 | Add to Cart |
| 5 | 956465 | Gearbox Oil Line Assy | $221.05 | Add to Cart |
| 6 | 241072 | Banjo Bolt M10x1x30 | $23.37 | Add to Cart |
| 7 | 440854 | Hex/torx-flange Screw M8x16 | $1.76 | Add to Cart |
| 8 | 481485 | Governor Cable Kit | $398.34 | Add to Cart |
| 9 | 810070 | Governor Flange | $421.80 | Add to Cart |
| 10 | 810310 | Oil Inlet Flange | $319.08 | Add to Cart |
| 11 | 832952 | Needle Bearing Rna 49/32 | $507.24 | Add to Cart |
| 12 | 944131 | Washer 8 Mm | $1.14 | Add to Cart |
| 13 | 227280 | Thrust Washer | $3.44 | Add to Cart |
| 14 | 230150 | Gasket Ring 10×14 A Din 7603 | $0.21 | Add to Cart |
| 15 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | $108.00 | Add to Cart |
| 16 | 232925 | Needle Sleeve 22x28x12 | $26.65 | Add to Cart |
| 17 | 240072 | Allen Screw M8x20 | $0.45 | Add to Cart |
| 18 | 240277 | Hex. Screw M8x25 | $0.67 | Add to Cart |
| 19 | 241073 | Banjo Bolt M10x1x19 | $74.73 | Add to Cart |
| 20 | 241237 | Allen Screw M6x16 | $0.21 | Add to Cart |
| 21 | 241935 | Allen Screw M6x20 | $0.67 | Add to Cart |
| 22 | 250315 | Washer 8,4 | $0.21 | Add to Cart |
| 23 | 430175 | O-ring 46×3 | $4.82 | Add to Cart |
| 24 | 810294 | Govenor Flange | $549.50 | Add to Cart |
| 25 | 810301 | Oil Inlet Flange | $386.28 | Add to Cart |
| 26 | 830415 | O-ring 7×2 | $1.31 | Add to Cart |
| 27 | 832363 | Ball Bearing 16002 | $319.33 | Add to Cart |
| 28 | 834233 | Drive Gear 29 T., | $79.50 | Add to Cart |
| 29 | 834245 | Vacuum Pump Gear 22 T., | $285.20 | Add to Cart |
| 30 | 840711 | Stud M8 X 21 | $54.05 | Add to Cart |
| 31 | 841594 | Allen Screw M8x35 | $1.31 | Add to Cart |
| 32 | 847223 | Distance Sleeve 84/15/6 | $85.23 | Add to Cart |
| 33 | 847773 | Drive Sleeve | $642.65 | Add to Cart |
| 34 | 847802 | Spacer 25/31,95/13 | $120.87 | Add to Cart |
| 35 | 853418 | Cable Clamp | $45.50 | Add to Cart |
| 36 | 911815 | Oil Pump Housing Assy., | $573.60 | Add to Cart |
| 37 | 926231 | Cover | $207.52 | Add to Cart |
| 38 | 931372 | Gasket | $346.68 | Add to Cart |
| 39 | 931770 | Gasket | $7.92 | Add to Cart |
| 40 | 940301 | No Longer Available | $3.00 | Add to Cart |
| 41 | 940316 | Countersunk Screw M5x12 | $0.67 | Add to Cart |
| 42 | 941522 | Allen Screw M8x16 | $1.12 | Add to Cart |
| 43 | 941611 | Screw Plug M8x1 | $6.29 | Add to Cart |
| 44 | 942674 | Hex. Nut M8 (ws 11mm) | $6.60 | Add to Cart |
| 45 | 945820 | Retaining Ring 52×2 | $2.85 | Add to Cart |
| 46 | 945832 | Lock Washer A8 | $0.21 | Add to Cart |
| 47 | 950380 | O-ring 32×4 | $5.69 | Add to Cart |
| 48 | 956460 | Pressure Oil Line Assy., | $334.51 | Add to Cart |
| HYDR. GOVERNOR | 227280, 230150, 232246, 232925, 240072, 240277, 241072, 241073, 241237, 241935, 250315, 430061, 430175, 440854, 481485, 810070, 810294, 810301, 810310, 810321, 830415, 832363, 832952, 832953, 834233, 834245, 840711, 841594, 847223, 847773, 847802, 853418, 911815, 926231, 931372, 931770, 940301, 940316, 940876, 941522, 941611, 942674, 944131, 945820, 945832, 950380, 956460, 956465 |
|---|
