| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 230415 | Gasket Ring A 6×10 Din 7603 | $0.27 | Add to Cart |
| 2 | 240483 | Plug Screw 1/8-27npt | $27.81 | Add to Cart |
| 3 | 241939 | Allen Screw M6x20 | $1.46 | Add to Cart |
| 4 | 242214 | Hex.nut M6 | $0.21 | Add to Cart |
| 5 | 640958 | Collar Hex.screw M8x68,5 Sw 11 | $4.61 | Add to Cart |
| 6 | 841305 | Collar Hex Screw M8x65 Sw | $37.66 | Add to Cart |
| 7 | 841581 | Hex. Screw M6x8 | $0.21 | Add to Cart |
| 8 | 850040 | Rubber Ring 152,5×2,5×5 | $12.06 | Add to Cart |
| 9 | 850339 | Gasket | $8.94 | Add to Cart |
| 10 | 850540 | O-ring 83-2 | $5.06 | Add to Cart |
| 11 | 850775 | Double Gasket 0,5 Mm | $30.08 | Add to Cart |
| 12 | 913448-1 | Cylinder Type A | $1,638.55 | Add to Cart |
| 13 | 913848 | Cylinder Head | $909.22 | Add to Cart |
| 14 | 922025 | Water Outlet Socket | $21.65 | Add to Cart |
| 15 | 922061 | Bent Outlet Socket | $53.80 | Add to Cart |
| 16 | 922511 | Thermostat With Gasket | $86.41 | Add to Cart |
| 17 | 922521 | Molded Hose_25/180 Degree | $51.60 | Add to Cart |
| 18 | 931270 | Thermostat Gasket | $3.08 | Add to Cart |
| 19 | 940551 | Hose Nipple, M6 | $56.49 | Add to Cart |
| 20 | 945831 | Lock Washer A6 Din 128 | $0.21 | Add to Cart |
| 21 | 951880 | Clamp 20-32 | $7.19 | Add to Cart |

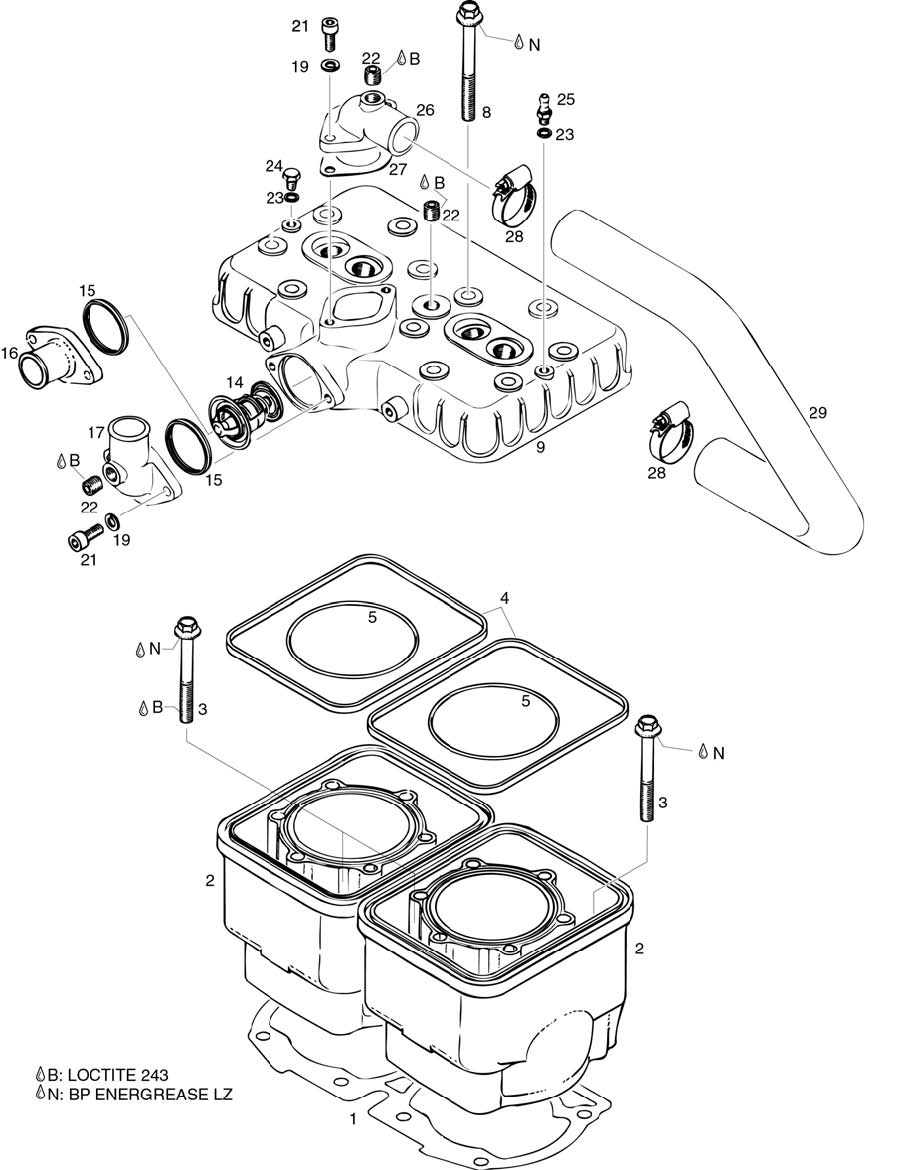

| CYLINDER, CYLINDER HEAD | 230415, 240483, 241939, 242214, 640958, 841305, 841581, 850040, 850339, 850540, 850775, 913448-1, 913848, 922025, 922061, 922511, 922521, 931270, 940551, 945831, 951880 |
|---|
